VDWall LVP609 4K/2K 60HZ LED HD Video Processor

SKU: VDWall-LVP609
1.4K2K_60Hz real 4K pole-clear LED video processor, advanced interlaced motion image adaptive processing technology, moving images without tailing and saw-tooth;
2. Within 4K2K range, the LED screen shows point-to-point synchronization display; supporting Promise zoom;the maximum load of one single machine is 16 million pixels, without cumbersome software settings;
$0.00 $2,519.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
1/1
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • VDWall LVP609 4K/2K 60HZ LED HD Video Processor
  • Description
  • Shipping Policy
  • Why Us

DWall LVP609 4K/2K 60HZ LED HD Video Processor Features:

1.4K2K_60Hz real 4K pole-clear LED video processor, advanced interlaced motion image adaptive processing technology, moving images without tailing and saw-tooth;

2. Within 4K2K range, the LED screen shows point-to-point synchronization display; supporting Promise zoom;the maximum load of one single machine is 16 million pixels, without cumbersome software settings;

3. Input: Ultra HD + HD + SD, analog + digital; HDMI2.0 (4K2K_60Hz) x 1, CVBS x 2, VGA x 1, DVI x 1, SDI / HD-SDI x 1;the seamless switch , fade in and out switch among them

4. Output: DVI digital full HD, up to 8 route, single-port resolution of 1920 x 1080_60Hz

5. Synchronous monitoring, you can use the monitor to monitor the 1080P 4K2K_60Hz input screen;

6. A variety of pre-stored mode and a key call, mode calling use seamless or fade in and fade out switch

7. Convenient panel key operation or RS232 / USB / LAN control settings.

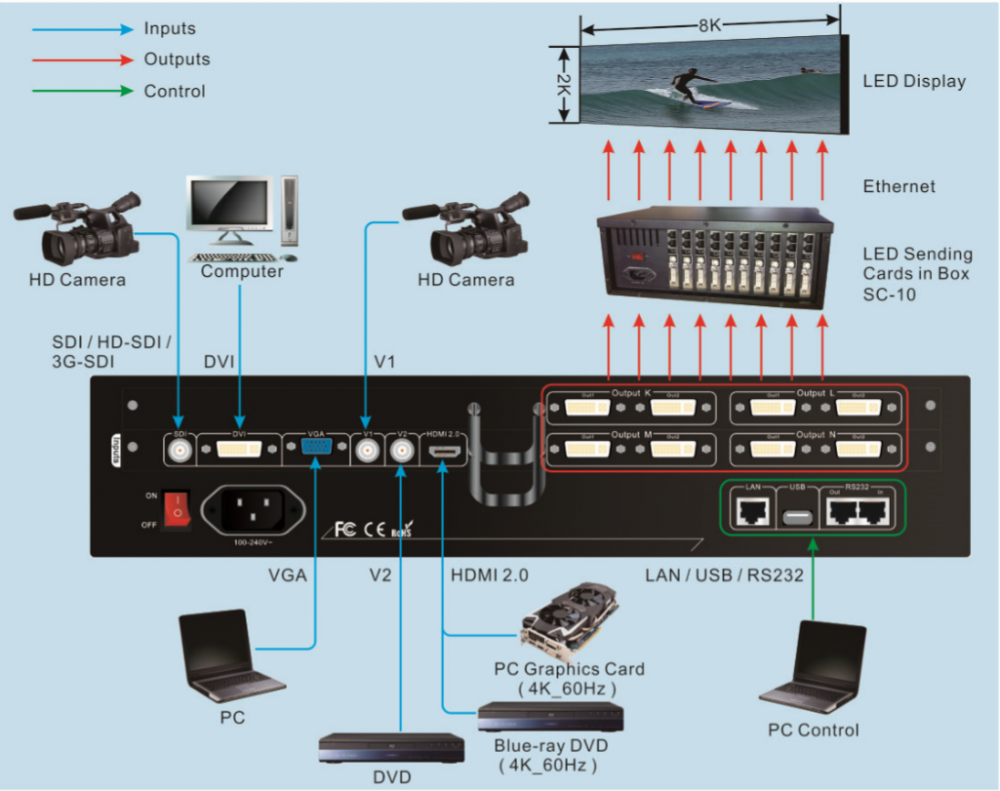

LVP609 connection diagram



VDWall LVP609 4K/2K 60HZ LED HD Video Processor Parameter:

Inputs

Quantity /Type

2×Video

1×VGA(VESA)

1×DVI(VESA)

1×HDMI 2.0((VESA/CEA-861)

1×SDI(SDI/HD-SDI/3G-SDI)

Video system

PAL/NTSC

Composite video amplitude Impedance

1V(p_p)/ 75Ω

VGA Format

PC(VESA)

≤1920×1200_60Hz

VGA amplitude Impedance

R、G、B = 0.7 V(p_p)/ 75Ω

DVI Format

PC(VESA)

≤1920×1200_60Hz

HDMI Format(HDCP2.0)

PC(VESA)

≤3840×2160_60Hz

HDMI2.0(CEA-861)

SDI Format

SMPTE259M-C

SMPTE 292M

SMPTE 274M/296M

SMPTE 424M/425M

480i_60Hz

576i_50Hz

720p、1080i、1080p

Input connectors

Video: BNC/ 75Ω
VGA:15pin D_Sub(Female)
DVI:24+1 DVI_D

HDMI:HDMI ATYPE

SDI:BNC/ 75Ω

Output

Quantity /Type

8×DVI

DVI Format

1920×1080_60Hz

Output connectors

DVI:24+1 DVI_D

Others

Control

RS232/USB/LAN

Input voltage

100-240VAC   50/60Hz

Overall power consumption

≤70W

Environment temperature

0-45℃

Environment humidity

15-85%

Product size

483(L) x 338(W) x94(H)mm

Carton size

540(L) x 400(W) x 180(H)mm

Net weight

5.95Kg

Gross weight

8.8Kg
