Essential 4K Video Scaling and Splicing, X1profeatures four 2K DVI outputs providing a full 4K split from 4K inputs.
X1pro e offers mulitple operation modes to extend usage application beyond 4K split to splicing applicaitons inlcuding 8Kx1K, 2Kx4K and more.

~~$1,728.00~~ $1,438.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

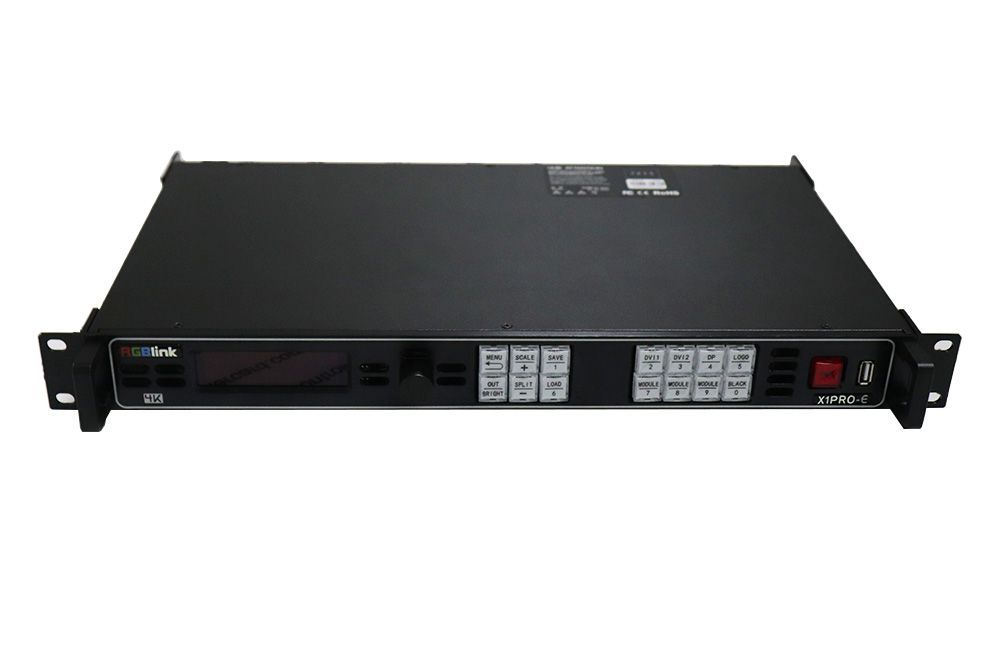

RGBLink VENUS X1PRO-E 4K HD LED Wall Video Processor Features:

● 8Kx1K, 4Kx2K and more

● Pixel-to-pixel scaling

● Independent scaling

● Multiple operation modes including 2K and Dual 2K preview

● Seamless switching

● Redundant outputs and hot back up facility

● Test patterns built in

● Compact 1U housing

Essential 4K Video Scaling and Splicing, X1profeatures four 2K DVI outputs providing a full 4K split from 4K inputs.

X1pro e offers mulitple operation modes to extend usage application beyond 4K split to splicing applicaitons inlcuding 8Kx1K, 2Kx4K and more.

2K and Dual 2K ($Kx1K) modes offer preview capability for even more control.

Fitted sparandard DVI and DisplayPort connecots, X1pro offers three option slots for 2K inputs sources which may include USB2.0 media and 3G-SDI.

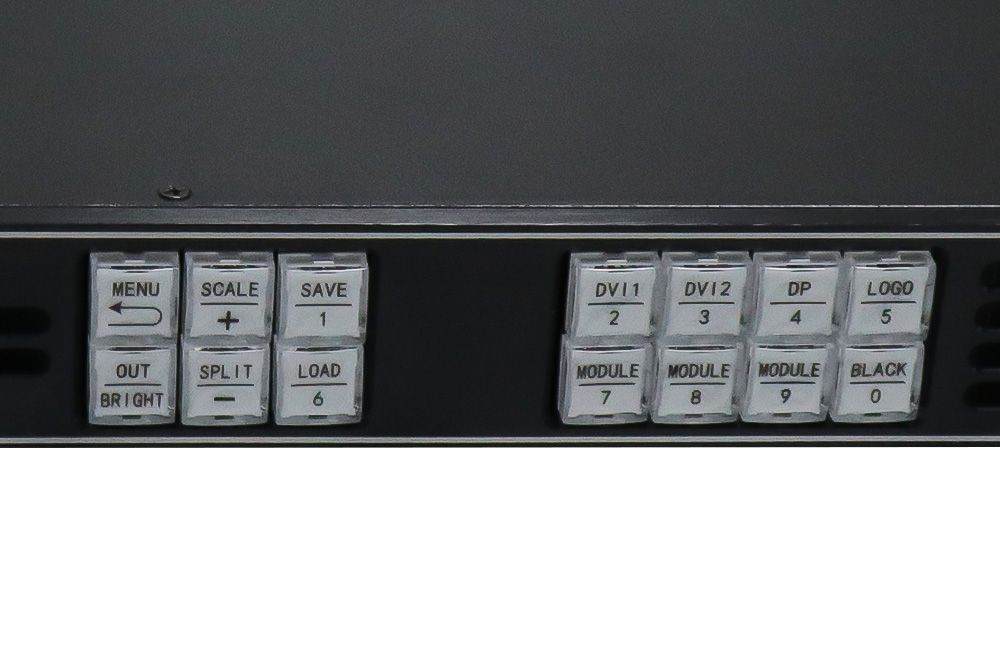

Control directly from the front panel or connect and control from XPOSE via RS232

X1pro e is intutive and fast to use, ideal for everyday video processing beyond 2K

RGBLink VENUS X1PRO-E 4K HD LED Wall Video Processor Parameter:

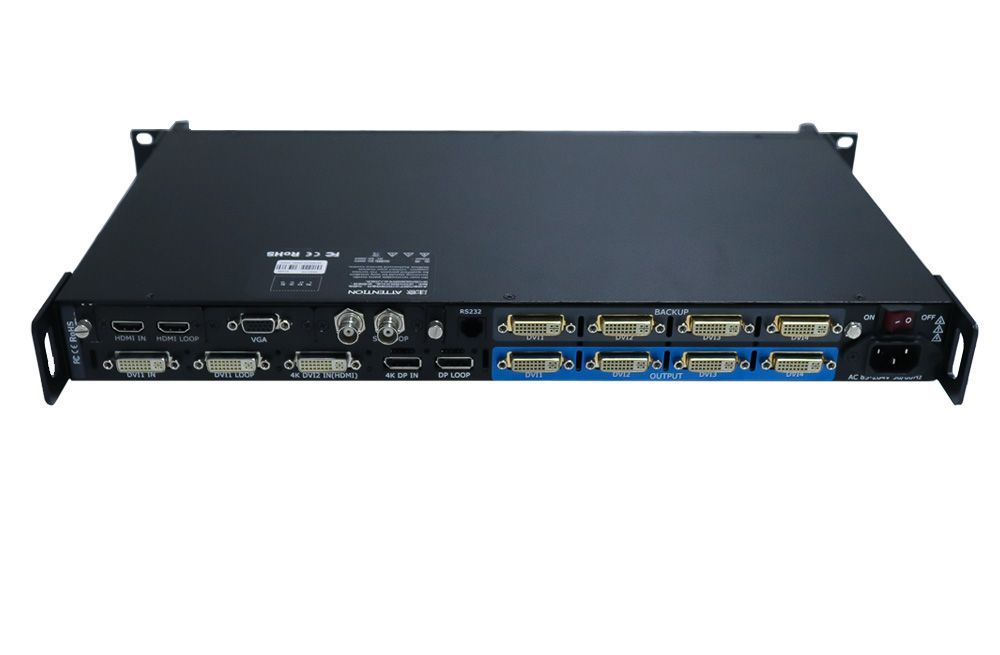

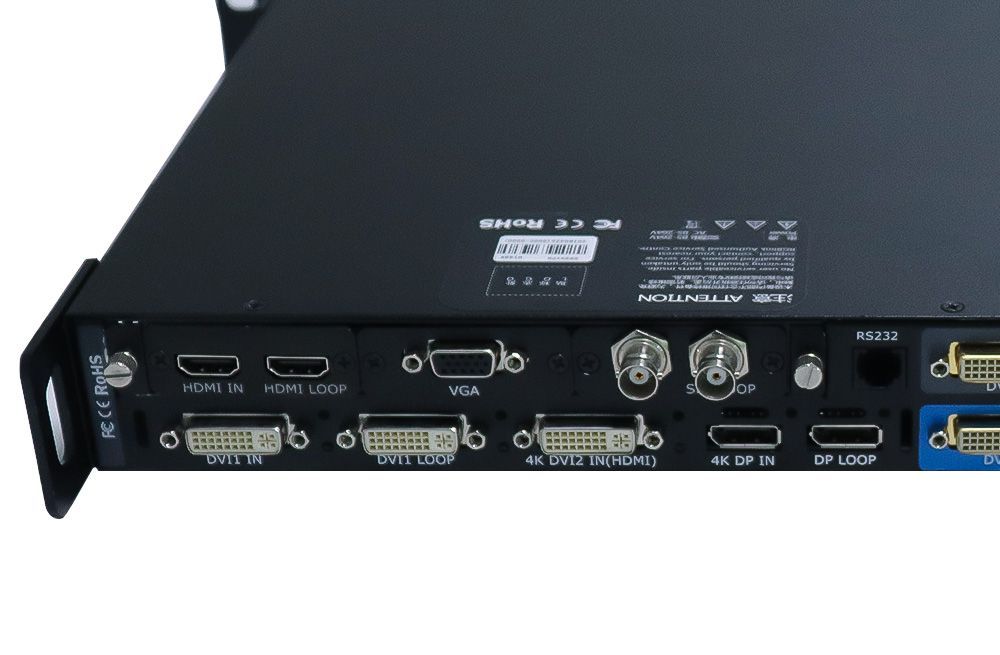

Connectors	Input	Standard with
		2 x DVI	In/loop
		1 x DVI	HDMI/HDCP
		1 x DVI	supported
		2 x DisplayPort	In/loop
		3 option
		slots
		Select	SDI \|
		from	DVI \| HDMI \|
			VGA \|
			DisplayPort \|
			CVBS \|
			USB2.0

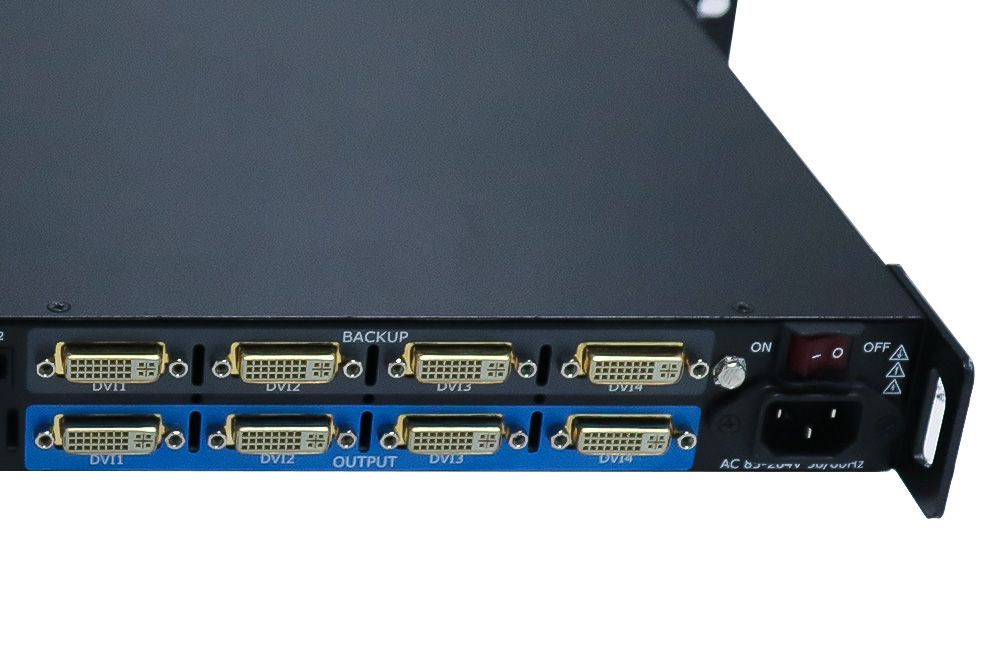

	Output	4 x DVI
		4 x DVI	Loop/backup

	Communication	1 x RJ11	Serial
		1 x RJ11	RS232 In
		1 x USB-A	Serial
		1 x USB-A	USB In

	Power	1 x IEC
	Power
Performance	Input	DVI
	Resolutions	SMPTE	525@29.97
			/59.94
			NTSC
			625@25
			/50 PAL
			720p@50
			/59.94/
			60Hz
			1080i@50
			/59.94/
			60Hz
			1080p@50
			/59.94/
			60Hz
		VESA	800x600@
			60Hz
			1024x768@
			60Hz
			1280x768@
			60Hz
			1280x1024@
			60Hz
			1600x1200@
			60Hz
			1920x1080@
			60Hz
			3840x1080@
			60Hz
			3840x2160@
			30Hz
		DisplayPort
		VESA	3840x2160@24
			/25/30Hz \|
			4096x2160@24Hz
		VGA
		SMPTE	525@29.97
			/59.94
			NTSC
			625@25
			/50 PAL \|
			720p@50
			/59.94
			/60Hz
			1080i@50
			/59.94
			/60Hz
			1080p@50
			/59.94
			/60Hz
		VESA	800x600@50
			/60Hz
			1024x768@50
			/60Hz
			1280x1024@50
			/60Hz
			1440x900@50
			/60Hz
			1600x1200@50
			/60Hz

	Output	Select from
	Resolutions	below or
		configure
	customised
	DVI
	SMPTE	720p@50
		/60Hz \|
		1080p@50
		/60Hz
	VESA	800x600
		@60Hz
		1024x768
		@75Hz
		1280x720
		@50
		/60Hz
		1280x768
		@60Hz
		1280x800
		@60Hz
		1280x1024
		@60Hz
		1360x768
		@60HZ
		1400x1050
		@60Hz
		1440x900
		@60Hz
		1600x1200
		@60Hz
		1680x1050
		@60Hz
		1920x1080
		@60Hz
		1920x1200
		@60Hz
		2048x1152
		@60Hz
		2560x816
		@60Hz

Support	DVI	DVI-I
Standards	HDMI	1.4
	DisplayPort	1.2

Grey Level	10 bit
Power	Voltage	AC
		100~264V
		50/60Hz
	Max Power	65W
Environmental	Temperature	-25°C – 55°C
Environmental	Humidity	20% - 90% RH
Physical	Weight	Nett	2.7kg
		Packaged	6.3kg

	Dimension	Nett	480mm x
			303mm x
			45mm
		Packaged	535mm x
			355mm x
			130mm

Specification Download:
RGBLink VENUS X1PRO-E Specification
RGBLink VENUS X1PRO-E User Manual
