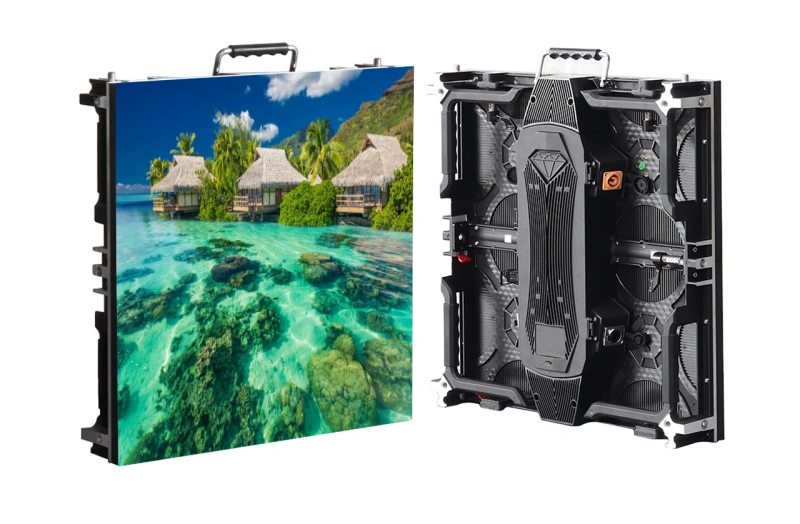

P3.91 Outdoor Die-Cast Rental LED Screen Panel 500x500mm

SKU: P3.91-OR16S-SMD1921-64x64-L500xH500
P3.91 Outdoor Die-Cast Rental LED Screen Panel, 65,536pixel/sqm, 6000cd/sqm brightness, outdoor HD rental LED display. Reformable which can be inner outward curve and other irregular shape. Hot seller.
$0.00 $345.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • P3.91 Outdoor Rental LED Screen 500x500mm:
    P3.91 Outdoor Rental LED Screen 500x500mm (Flat)
    P3.91 Outdoor Rental LED Screen 500x500mm (Arc)
Quantity
-
+
  • P3.91 Outdoor Die-Cast Rental LED Screen Panel 500x500mm
  • P3.91 Outdoor Die-Cast Rental LED Screen Panel 500x500mm
  • P3.91 Outdoor Die-Cast Rental LED Screen Panel 500x500mm
  • P3.91 Outdoor Die-Cast Rental LED Screen Panel 500x500mm
  • P3.91 Outdoor Die-Cast Rental LED Screen Panel 500x500mm
  • P3.91 Outdoor Die-Cast Rental LED Screen Panel 500x500mm
  • P3.91 Outdoor Die-Cast Rental LED Screen Panel 500x500mm
  • Description
  • Shipping Policy
  • Why Us
  • Notice before order

P3.91 Outdoor Adaptable Die-Cast Rental LED Screen Panel Features  :

1) Hot Sale 500*500mm Die- cast aluminum Rental Cabinet. Slim and light weight.

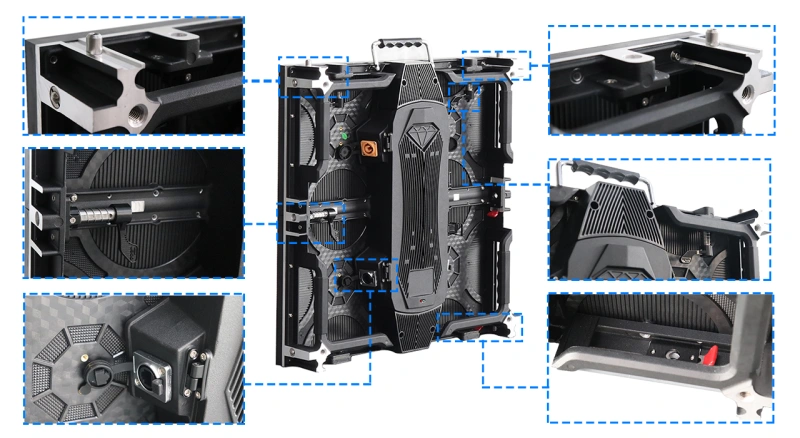

2) Strong Fast Lock, More accurate and easy to handle, make it minimum gaps between cabinet.

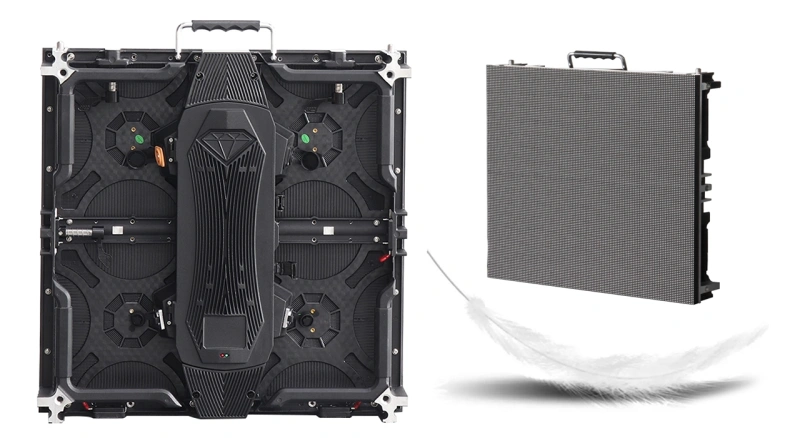

3)  Light weight, only 9KG for 500x500mm&nb sp;cabinet.

4) ±15° angle adjustable between cabinet, enable to make into inner arc or outter arc shape even rount shape use 12 cabinet.

5)  Fast lock design, good rental hanging&n bsp;solution.



P3.91 Outdoor Adaptable Die-Cast Rental LED Screen Panel Applications:

Outdoor Rental LED Display panel

Outdoor Rental Arc/ Round/ Cylinder/ Column LED Display Panel



Parameters of P3.911 500*500mm outdoor rental led display:

LED Lamp Specification

Color

Package

Intensity

Viewing Angle

Wavelength

Testing Conditions

Red

SMD1921

180mcd

140°

622nm

25℃,15mA

Green

SMD1921

480mcd

140°

522nm

25℃,8mA

Blue

SMD1921

85mcd

140°

472nm

25℃,5mA

Module Parameter

Pixel Pitch

3.91mm

Pixel Configuration

SMD1921

Density

65,536 pixels/㎡

Module Resolution

64pixel(L) *64pixel(H)

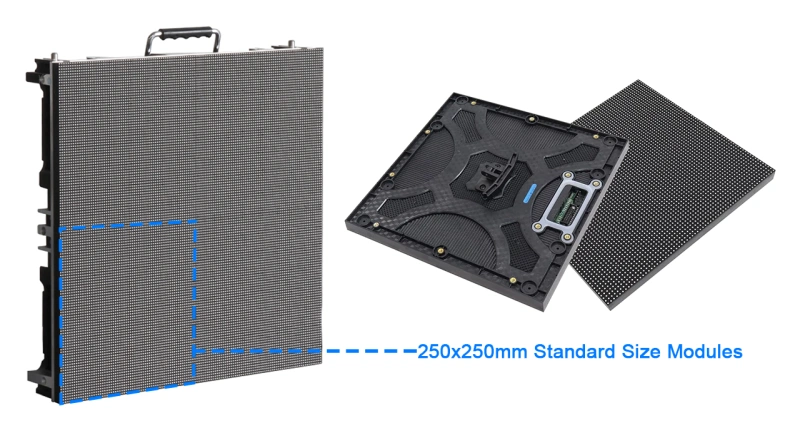

Module Dimension

250mm(L) * 250mm(H) * 25mm(D)

Driving Mode

Constant current, 1/16 duty

Module Mask

Pure black mask---high contrast screen

LED Cabinet

Module Quantity in a Cabinet

2(L) * 2(H)

Cabinet Dimension

500(L)* 500(H)* 80(D)mm

Cabinet Resolution

128(L) * 128(H)

Cabinet Material

Die-Cast Aluminum

Cabinet Weight

≈9KG

Electricity Parameter

Optical Ratings

Brightness

≥6,000 cd/㎡

Viewing Angle

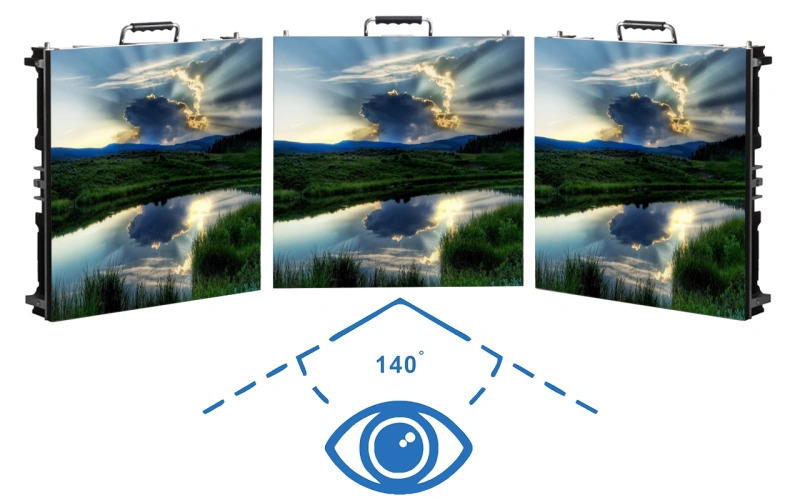

140°(Horizontal); 140°(Vertical)

Best Viewing Distance

≥4m

Gray Grade

14 bits

Display Color

4.4 trillion Colors

Brightness Adjustment

100 grades by software or automatically by sensor

Operation Power

AC100-240V 50-60Hz  Switchable

Max. Power Consumption

720 W/㎡

Avg. Power Consumption

240 W/㎡

Control System

Frame Frequency

≥60Hz

Refresh Frequency

≥1,920Hz

Input Signal

Composite Video, S-video, DVI, HDMI, SDI, HD-SDI

Control Distance

100m(Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode

800*600, 1024*768, 1280*1024, 1600*1200

Color Temperature

5000—9300 adjustable

Brightness Correction

Pixel by pixel, module by module, cabinet by cabinet

Reliability

Working Temperature

-20~+60 ºC

Storage Temperature

-30~+70 ºC

Working Humidity

10%~90% RH

Lifetime

100,000 hours

MTBF

5000 hours

Continuous Operating Time

≥72 hours

Protection Grade

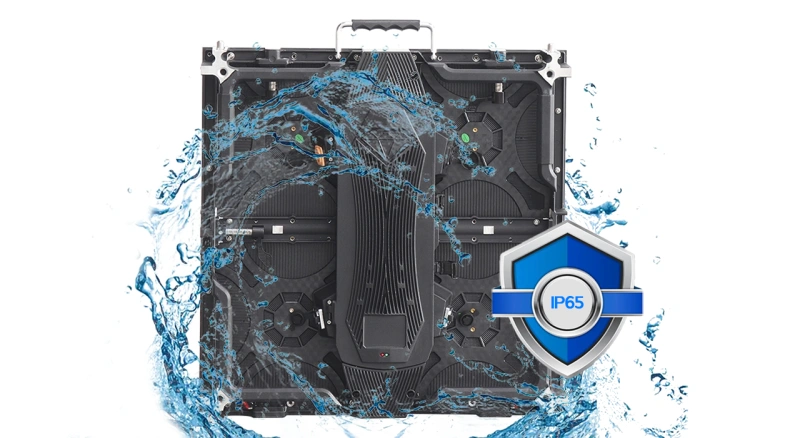

IP65(front), IP54(rear)

Out-of-Control Pixel Rate

≤0.01%

1. Each items not including shipping cost. You can check the shipping cost after you add the goods in the shopping cart.


2. DHL express is the default method. Others express like UPS or Fedex will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us in advance.


3. We will ship your order within 2 working days upon receiving payment. We will re-inform you another fastest delivery date if the goods is out of stock.



4. We only ship to the confirmed address from your order information. Please do confirm the delivery address on your account when you pay by PayPal or Credit Card.



5. Shipment time is depends on the carrier and excludes weekends and holidays. Transit time may slow, particularly during the holiday season.


6. Please inform us in advance if you wanna declare lower value on the shipping invoice in order to avoid or minimize the customs tax on your side. If not, we will use the orginal amount as paid.


7. If required, please assist the courier for necessary assistance concerning the customs clearance of the goods locally.


8. Please check the items in front of the courier when they arrive. If the goods are damaged, please try to obtain local courier’s documentary evidence for the breakage, In the meantime, please email us with photos or videos of the packaging and products as soon as possible.


9. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you ASAP.



10. The products ordered will not enjoy return and warranty if their codes are ripped off.



11. We provide two years warranty for most of our products sold (special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free at our factory. Customers only responsible for turn back shipping cost.

Why Buy from us?

1.Strong technical background. we are a professional LED screen manufacturer in Shenzhen China. our engineers are well experienced in all kinds of LED controller card configuration and operation and producing and using LED screens.

2.No MOQ request on all our products. You can buy even one sample to test our products before placing bulk orders.Many other suppliers have strict MOQ request,which is not convenient for buyers.

3.Quick and safe payment. You can pay by credit card through Paypal, which offers complete buyer protection and avoids having to share any of your financial information.

4.Good quality control. Our technicians inspect all the products earnestly before packaging.

5.Long warranty period. All LED controller products you buy from ledpartsmall.com are under two years warranty. You can send the defective products back to us for repair during the warranty period, and we will repair them and send back to you. The shipping cost is afforded by sender.

6. Good support from our English-speaking engineersBefore and after sales 7/24, you can get full support from our engineers, we are proficient in English.

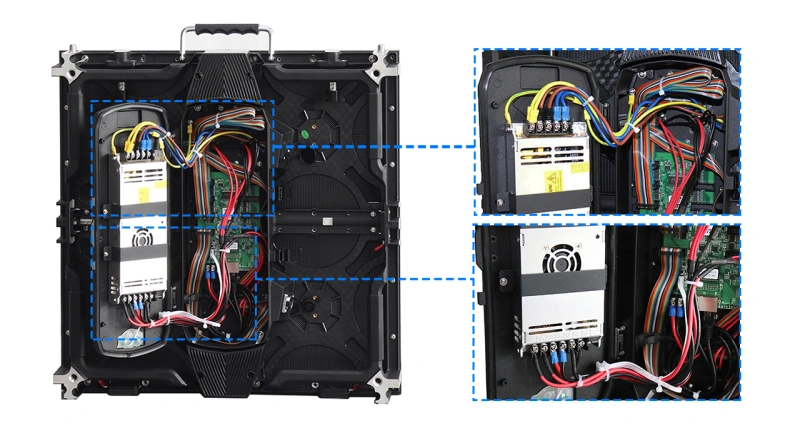

1) Parts included : Waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
