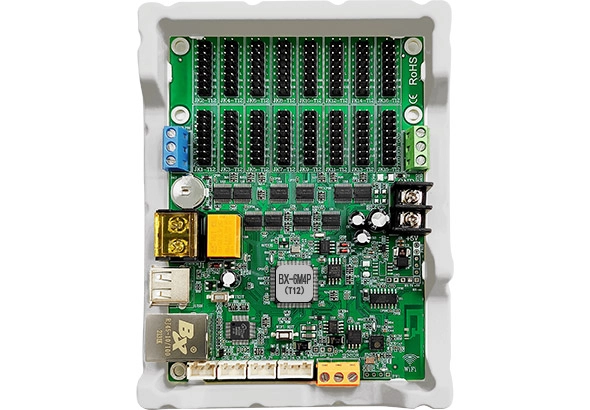

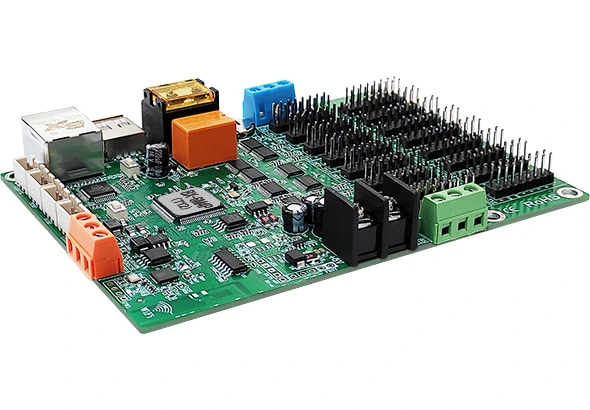

Onbon BX-6M4P/6M4-T12(E+RS232+RS485)/+wifi LED Controller Card

Name: Onbon BX-6M4P/6M4-T12(E+RS232+RS485)/+wifi LED Controller Card
Brand: Shopping LED Screen controller Video processor power supply
SKU: BX-6M4P-T12
Price: 63 USD
Availability: InStock

SKU: BX-6M4P-T12

BX-6M4P isolates invalid network data, adapts to busy complex network (including more cameras), and has more stable communication
Support Tri color screen ¦ Support smart scan ¦ Support Environmental monitor ¦Cross&T sharp screen¦Support monitor programs；
100M network+RS232+RS485 +USB on board;Optional WiFi ,support mobile app;
Onboard multiple sensor interface, relay switch, program selection interface;

$63.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description
Shipping Policy
Why Us

Speically used for LED screen projects.
BX 6th generation products get a higher station on core technology compare with BX 5th generation products and the products on LED fields:

1.Improved functions and more complete series
⑴ Support tri-color; Support smart scan; Support all kinds of special modules and full color modules;
⑵ BX 6th YY series are integrated with voice chip, which support broadcasting of both Chinese & English;
⑶ Add 6S series Environment detecting controller;
Add 6X series MODBUS controller;
⑷Strong software. Support Mongolian, Hebrew and Arabic. Support vertical compose on horizontal screen.
⑸ BX 6th generation controllers support configuration and modify IP in system;
⑹ All BX-6 series can support USB upload program.

2. Improved display effect
⑴ Monokaryon construction and dikaryon performance;BX-6A/6U/6M/6W will replace the 5E/6E products in the middle length screens
⑵ Synchronous preview on editing;
⑶ Adjust moving speed of program, more smooth;
⑷ It’s very stable and no flashing when users update data of screen at real time by BX-6K series;
⑸Super long, high and big control zone of BX-6E series:
width≤8192 pixels, height≤1024 pixels, maximum pixels is 4096K. The moving speed can be 3 times than BX-5E series;

3.More interfaces and excellent technology
⑴ Brightness/temperature/temperature&humidity sensor and IR controller socket on board.
⑵ RS232+RS485+USB port standard match on BX-6A series; There are Ethernet+RS232+USB port on BX-6E series;
⑶ Most of BX 6th generation products adopt plastic package. Advantages: fire resistance, environmental protection, anti-static, high temperature resistance;

Advantages of BX 6th generation products
1. More convenient operations, more complete software functions;
2. More perfect products design, more detailed on quality;
3. More excellent technology, more outstanding performance;
4. More abundant products series, more perfect solutions;

Technical parameters
Product status	Launched into market in Oct 2020
Control size	Single color 128K,Dual color 96K,Tri color 64K; width：≤2048 pixels
Display mode	Single color :204864 134496 1024128 672192 512*256
Storage	4MByte

Program quantity	Support 128 programs
Area quantity	Each program maximum support 24 areas
Area type	Weather/Image&text//subtitle/animation /lunar/ time/dial/timer/sensor areas
Border	Program shine border /Area shine border
Clock	Lunar /Dial/ Chinese and English clock/timer (all support multi-groups)
Software function	group sending/multi-program edit/multi-area display/multi-language version；

Display effect
Moving smoothness	No cross lines when moving to the left, and will not shake when lower the moving speed. the brightness will not be lower when move left in a long screen;
Program stability	Support adjusting moving speed; high refresh rate, stable running on screen;
Best upload width	≤1536 pixels

Module compatibility
Module	Support all kinds of single/dual/tri color modules
Column driver IC	Support 74HC595,SM16188,common constant current chip, double latch chip and other mainstream LED drive chip Not support all PWM chip
Row decoding IC	Support 74HC138 row decoding/none decoding module,not support other row decoding IC,infuture will support
Scan mode	Support smart scan,support any kinds of scan mode from static to 1/32
Module empty spot	Support any empty spot

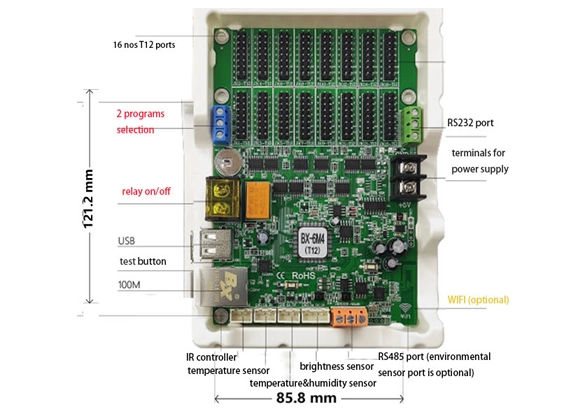

Interfaces
Interface	16 nos of T12
Communication	100M Ethernet+RS232+RS485+USB+WIFI ,RS232 communication distance ≤ 200m
Sensor	IR / brightness/temperaure/temp&humidity sensor socket on board
Program selection	Standard with 2 bits programs selection port.Support external signal to switch 4 programs; I/O more program switching requirements.
Remote switch	On board Relay. remote ON-OFF screen

Important functions
Communication	Support LAN and internet communication, IP online configuration and group setting, auto checking MAC inflict and IP inflict.Support RS232 and RS485 serial communication; support USB download font library; optional WiFi to meet the wireless local area network application;
Network enhancement	BX-6M4P isolates invalid network data, adapts to busy complex network (including more cameras), and has more stable communication
Group sending	Support adaptive release on different screen programs
Monitor program	Support monitor program
Program displaying	Play in order, Play by timing and emergency notice.Standard with 2 bits programs selection port.Support external signal to switch 4 programs; I/O more program switching requirements
Timing switch	Support auto timing switch,software switch
Brightness adjust	16 grade brightness, support manual /timing/auto adjust mode
Remote switch	Support auto timing switch,software switch
Normal sensor function	Support temp/humidity sensor connection and display.support brightness sensor connection.
Environmental monitoring sensor	Support wind speed, wind direction, air quality, noise, atmospheric pressure, light, and negative oxygen ions; Support radar speed measurement, water level, rainfall, etc
Weather report	Support China & overseas weather report
Voice broadcast function	Match with BX-YY to support Chinese and English voice broadcast. The display content can be broadcast simultaneously, or other content can be broadcast independently.
Parameter fast configuration	Supports saving and reading back configuration parameters
Any layout	Support arbitrary typesetting rules in Mongolian, Hebrew, Arabic, etc, easy to make vertical font
Secondary development	Provide secondary development packages ,support windows / Linux / Android / IOS and other major systems, including various dynamic libraries, communication protocols, test routines, etc; Supports Java / C / C + + / C # / Delphi and other mainstream programming languages, supports users to carry out secondary development on various platforms, and meets the development and expansion of user's personalized customization function to the greatest extent.
Cloud application and information safety	Support iLedCloud/iLEDSys platform and iLedCloud wechat mini program. Functions: real name authentication, different grade roles, edit/check/release program, self-adapt program, etc. Remotely manage LED displayes and monitor the status of LED displays. Create program report, online monitor informations on screen, and guarantee safety of informations.

System update and maintenance
Platform update	iLEDCloud and iLEDSys update online；
Firmware update	Support firmware update online,cost efficient

Electricity parameters
Working voltage	5V（3.5V～5.5V wide working voltage ）
Max power	≤2W

Environmental adaption
Working temperature	-40℃～80℃
Salt-spray resistant level	There is no problem for the distance 500M from sea

Electromagnetism compatibility
Wireless harass	Testing for power supply port, LAN and serial port, all reach the standard
Immunity of discharging static electricity	Testing for LAN, serial, USB, sensor, I/O ports. Level 4, discharging 8KV. Reach the standard
Surge impact	Testing for power supply port and LAN port. Level 4, discharging voltage is 4KV.

Quality assurance
Quality standard	7*24 hours power-on, fault rate ≤0.3%
Construct protection	Plastic bracket, inflaming retarding, insulation, antiseptic, environmental, anti-static, high temperature resistance
Apperance protection	UV three-protection glue for all types, national standard 85 protection level, dust prevention, dampproof, anti-static, salt-spray proof

Terminal management and auto control
Network communication	Support LAN and internet
Manage device	PC,Android and IOS
Remote control	System parameters configuration, program playing controlling, update sending program, adjust brightness automatically, turn on/off screen by timing.
Group sending	Support adaptive release on different screen programs
Software	LedshowTW（PC software）, Ledshow（ mobile phone APP） Cloud platform：iLEDCloud, iLEDCloud wechat mini program, iLEDSys（enterprise version/setup separately）
