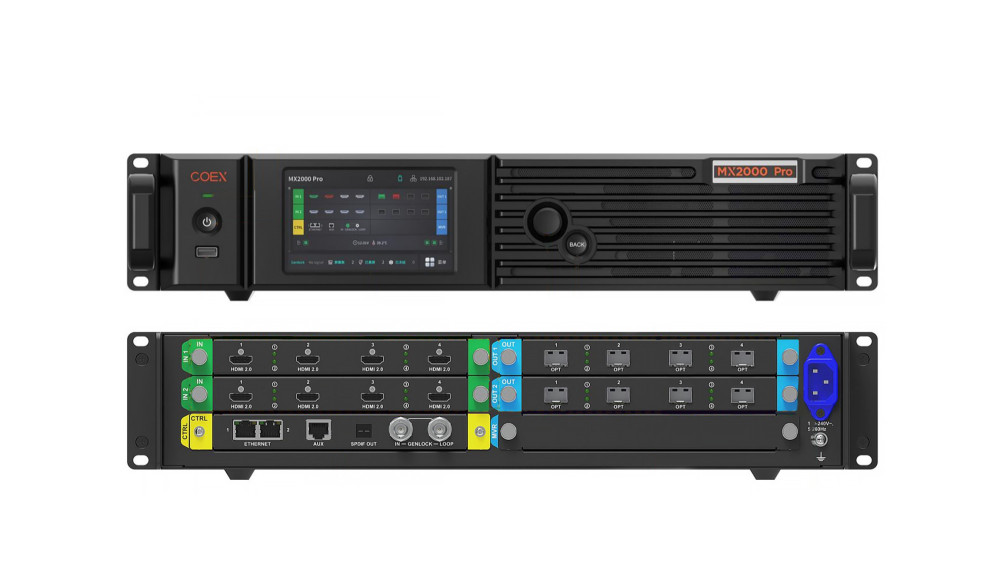

Novastar MX2000 Pro Two-in-One control server Features:

Inputs and Outputs:

• 2x input card slots, users may chooseinput cards of the following types

− 4K input card: 4× HDMI 2.0
− 8K input card: 2× DP 1.4

• Authentic 12bit video input

-12bit/10bit/8bit supported

• Supports real-time previewing and monitoring of the video source input and LED screen display status.
• 2x output card slots

MX_4x10G_Fiber output card: Work with CVT10 fiber converter to achieve 1G transmission (capable of loading 650,000 pixels in a single Ethernet cable).

• Supports frame rates of up to 360 Hz

(max frame rate is decided by thescreen's hardware configuration).
Screen Management:

• Card-based screen

To cope with multi-screen application scenarios with ease and to achieve flexible configuration, this feature allows user to configure LED screen based on output cards.

• Synchronized output splicing

With the help of frame synchronization, the output images on the same screen are completely synchronized. This enables the output to
deliver smooth playback and perfect image without issues such as picture stutter, frame loss, image tearing, and noticeable cut lines.

• No rectangle restriction

No rectangle restriction for irregular screens. This means when calculating resolutions, blank pixels do not count towards the total capacity.
The used load capacity of Ethernet ports is the sum of the resolutions of all cabinets.

• Preset

For optimal display in various scenarios, users can adjust display parameters such as layers, brightness, color temperature, and gamma
ahead of time and save them as presets. Users can save up to 128 customizable presets which can be easily applied or switched with just one click.

Specification Download：

Novastar MX2000 Pro Two-in-One control server Specification

Manual Download：

Novastar MX2000 Pro Two-in-One control server Manual
