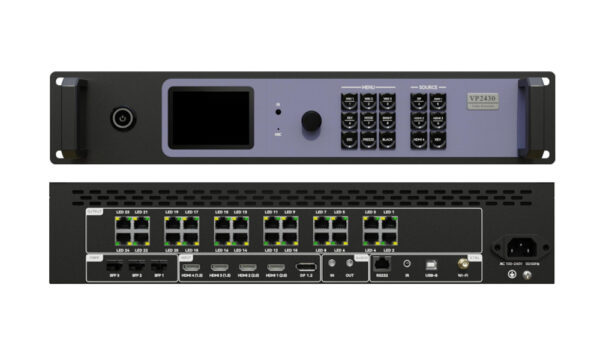

Name: Huidu HD-VP2430 24-Port LED Video Processor
Brand: Shopping LED Screen controller Video processor power supply
SKU: Huidu HD-VP2430
Price: 1200 USD
Availability: InStock

SKU: Huidu HD-VP2430

The Huidu HD-VP2430 is a 2-in-1 LED video processor and sending controller for large LED displays. Its 24 Gigabit Ethernet outputs support a total loading capacity of up to 15.72 million pixels. Three 10G fiber outputs provide a connection option for longer runs when used with a compatible fiber transceiver. It accepts five synchronous video inputs and lets operators arrange three video windows for multi-source presentations.

$1,200.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Huidu HD-VP2430 overview

Key specifications

Huidu HD-VP2430 input, output and control specifications
Item	HD-VP2430 specification
LED loading capacity	Up to 15.72 million pixels
Maximum canvas dimensions	16,384 pixels wide; 8,192 pixels high (subject to the total pixel capacity)
Video inputs	1 × DP 1.2, 2 × HDMI 2.0, 2 × HDMI 1.3
LED outputs	24 × Gigabit Ethernet ports; 3 × 10G fiber optic interfaces
Video windows	3, with flexible layout
Scene presets	16
Audio	TRS audio input and output
Control	USB-B, Wi-Fi and RS232; optional infrared remote

Inputs, switching and display layout

The five video inputs comprise two HDMI 2.0 ports, two HDMI 1.3 ports and one DP 1.2 port. Huidu describes the DP 1.2 and HDMI 2.0 inputs as three 4K-capable inputs. The processor supports seamless switching between sources and flexible positioning of three video windows. Input resolution and window capability are separate from the 15.72-million-pixel LED output limit.

LED output and installation

Use the 24 Gigabit Ethernet outputs to connect the LED receiving-card system. For longer cable runs, the three 10G fiber interfaces can be used with a compatible fiber transceiver; Huidu names the FT08 for long-distance transmission and screen copying. Check the receiving-card system, port mapping and fiber equipment against your project design before ordering.

Control options

The HD-VP2430 provides 16 scene presets and supports control through USB-B, Wi-Fi and RS232. Huidu also lists mobile-app control and an optional infrared remote. TRS audio input and output are available for installations that need an external audio connection.

Specification Download:
Huidu HD-VP2430 2-in-1 Video Processor Specification
