Name: Huidu HD-C16H LED Display Asynchronous Controller
Brand: Shopping LED Screen controller Video processor power supply
SKU: Huidu HD-C16H
Price: 90 USD
Availability: InStock

SKU: Huidu HD-C16H

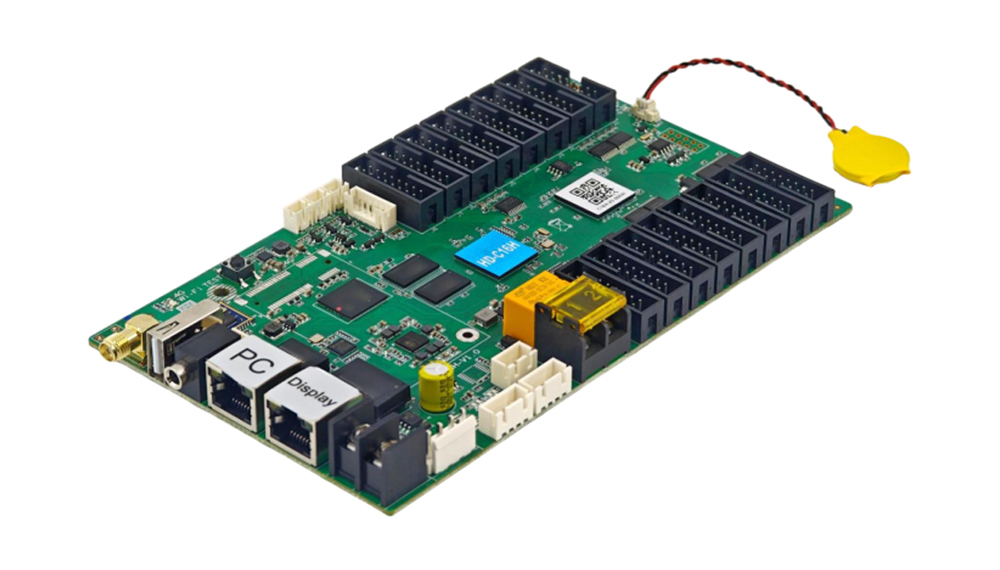

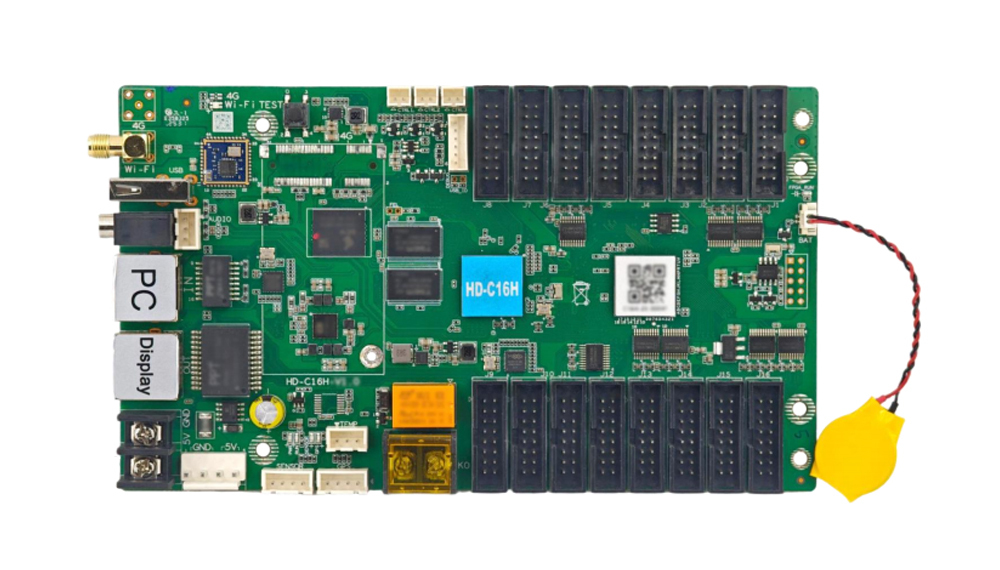

The Huidu HD-C16H is a full-color asynchronous LED control card that combines media playback, sending and receiving. It can drive compatible LED modules directly through 16 HUB75E interfaces, or connect to HD series receiving cards through its Gigabit Ethernet output. Built-in Wi-Fi, LedArt mobile control and USB updates make it suitable for LED signs that need scheduled or regularly refreshed content.

$90.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Overview

Direct Drive or Cascaded Receiving Cards

HD-C16H loading capacity by connection method
Configuration	Pixel capacity	Connection and sizing notes
C16H direct drive	Up to 260,000 pixels	16 onboard HUB75E ports; maximum width 2,048 pixels. Actual load depends on module resolution and interface use.
C16H with HD receiving cards	Up to 650,000 pixels total	One Gigabit Ethernet output; widths up to 8,192 pixels are subject to loading derating above 2,048 pixels.

Maximum width is a dimension limit, not a promise that every screen at that width fits the pixel budget. Calculate total pixels as width × height, then confirm the complete module layout and receiving-card configuration before ordering. For tall or extra-wide displays, request confirmation of the supported dimensions for the supplied hardware and firmware.

HD-C16H Specifications and Interfaces

Huidu HD-C16H control, playback and connection specifications
Item	Specification
Controller type	Asynchronous full-color LED control card with integrated playback, sending and receiving
LED connections	16 × HUB75E; 1 × Gigabit Ethernet output for compatible HD receiving cards
Network communication	1 × 100 Mbps Ethernet port; TCP/UDP communication
Wireless control	Built-in 2.4 GHz Wi-Fi; AP and STA modes, including simultaneous operation; LedArt mobile app
USB	Program updates and storage expansion
Video decoding configurations	1 × 4K, or 3 × 1080p, or 8 × 720p, or 16 × 360p
Optional HDMI input	Requires an HDMI adapter board; up to 1920 × 1080 at 60 Hz
Audio output	3.5 mm TRS stereo output and 3-pin dual-channel audio connector
Sensor connections	2 general-purpose sensor inputs and 1 dedicated temperature-sensor input; sensors selected separately
Control expansion	Onboard relay, 3 CTRL groups and UART communication; RS-232/RS-485 options require the appropriate hardware configuration
Remote management	XiaoHui Cloud support; 4G module is optional

4K decoding is not 4K LED output. Source-video decoding, optional HDMI input resolution and LED pixel loading are separate specifications. The display must remain within the applicable direct-drive or cascaded-system limits.

Local Updates, Wireless Control and Remote Management

Wi-Fi, Ethernet and USB workflows

Use LedArt over Wi-Fi for local wireless content control, Ethernet for wired communication, or a USB drive to update programs. The board supports video, still images, GIFs, text, animated text, documents, tables, clocks and timers. Wi-Fi AP and STA modes provide flexibility for direct access and network-connected operation.

Cloud control and optional hardware

XiaoHui Cloud supports remote management of multiple displays. For installations using cellular connectivity, specify the optional 4G module for the deployment region. Confirm the HDMI adapter, sensors and serial-interface options required for the project; support for an accessory does not mean it is included with every controller.

Applications and Selection Checklist

The HD-C16H is suited to storefront signs, smart light-pole displays, vehicle signs and community information screens. Choose the connection method around the actual LED module layout and the way content will be updated.

Provide the total screen width and height in pixels, module resolution, scan configuration and driver IC.
Specify whether modules connect directly to HUB75E ports or use separate HD receiving cards.
Choose local Wi-Fi, wired Ethernet, USB updates or remote cloud management.
List any required HDMI adapter, 4G module, sensors or serial communication options.

Specification Download:
Huidu HD-C16H LED Display Asynchronous Controller specification
