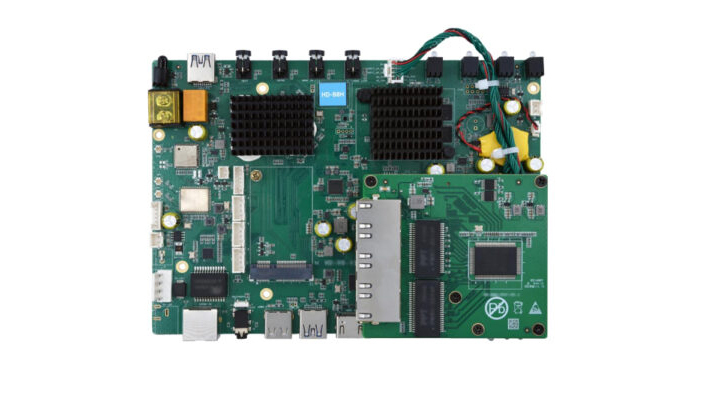

Name: Huidu HD-B8H LED Poster Controller
Brand: Shopping LED Screen controller Video processor power supply
SKU: Huidu HD-B8H
Price: 448 USD
Availability: InStock

SKU: Huidu HD-B8H

The Huidu HD-B8H is a controller designed for LED poster screens, digital signage and multi-screen displays. It combines media playback, local program creation and display control in one unit. Its four Gigabit Ethernet outputs connect to compatible Huidu receiving cards. For buyers planning a video wall, the key distinction is that one HD-B8H loads up to 2.6 million pixels, while HDMI LOOP splicing can bring the combined display load to 8.8 million pixels in a supported cascaded setup.

$448.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Huidu HD-B8H LED Poster Screen Controller

Key Features

Flexible poster layouts: HDMI cascading supports multi-screen splicing, including displays with different resolutions and orientations.
4K media playback: Hardware decoding supports 4K video content. The 4K playback capability does not mean a single unit can load a 4K LED canvas; check the pixel-load limit for your display.
Multiple control methods: Create and play programs locally, use Wi-Fi for mobile control, or manage screens remotely with Huidu’s XiaoHui Cloud platform.
Wireless casting: Supports screen mirroring from Windows, macOS, iOS and Android devices.
Installation flexibility: HDMI plug-in adaptive scaling, USB playback and cascade synchronization support changing content and multi-screen operation.

HD-B8H Specifications at a Glance

Huidu HD-B8H control and playback specifications
Item	HD-B8H
Single-unit LED load	Up to 2.6 million pixels
HDMI LOOP spliced load	Up to 8.8 million pixels in a supported cascaded configuration
Maximum display dimension	Up to 65,536 pixels wide or 8,192 pixels high, subject to the total pixel-load limit
LED outputs	4 × Gigabit Ethernet
Storage	64 GB
Maximum splicing quantity	Up to 14 units
Connectivity	HDMI, USB, Gigabit Ethernet, Wi-Fi, RS232 and RS485

Display width and height are separate limits; they do not increase the single-unit pixel capacity. Confirm receiving-card compatibility and the final screen configuration before ordering.

Connections and Playback

The HD-B8H provides two HDMI 1.4 inputs for source and cascade workflows, one HDMI output for loop-out or monitoring, two USB ports for playback or updates, and an OTG port. One network input connects the controller to a LAN, while four Gigabit Ethernet outputs drive the LED receiving-card chain. RS232, RS485, TTL sensor and relay interfaces support peripheral or central-control integration. A 3.5 mm stereo audio output is also provided.

Depending on the display load, the controller supports multiple video windows: up to 2 × 4K, 6 × 1080p, 10 × 720p or 20 × 360p. When the total spliced load exceeds 8.29 million pixels, the supported configuration is reduced to 1 × 4K, 3 × 1080p, 5 × 720p or 10 × 360p. These are playback-window figures, not the LED output resolution of a single controller.

Common Applications

Use the HD-B8H for standalone LED posters, coordinated poster displays, mobile digital signage and HDMI-spliced LED video walls. It suits installations that need local scheduled content as well as wireless or cloud-based updates.

Specification Download:
Huidu HD-B8H LED Poster Display Controller Specification
