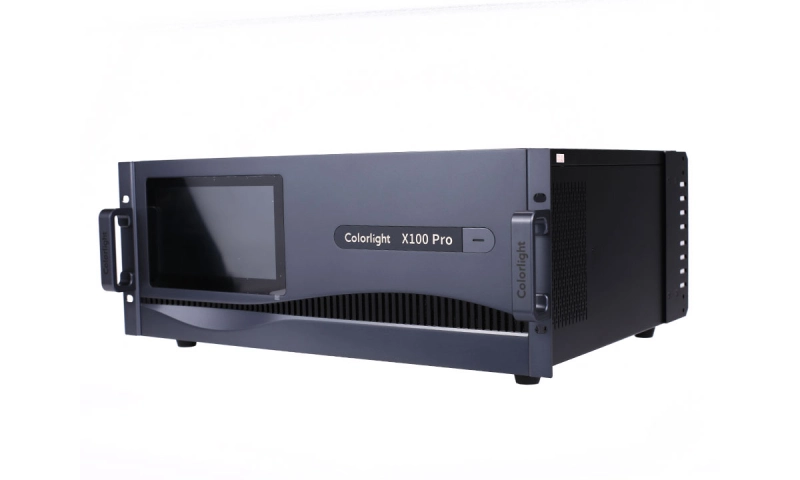

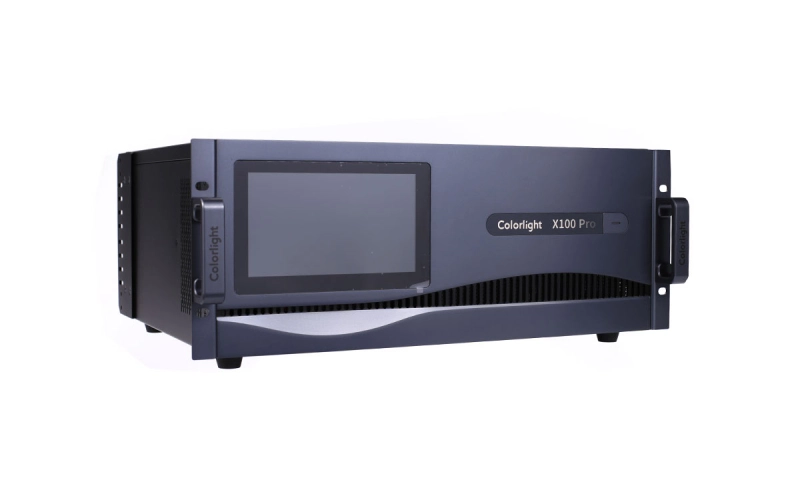

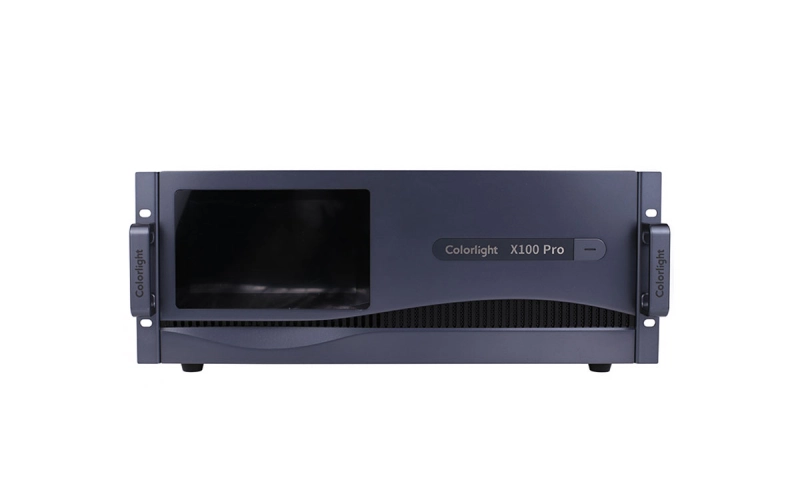

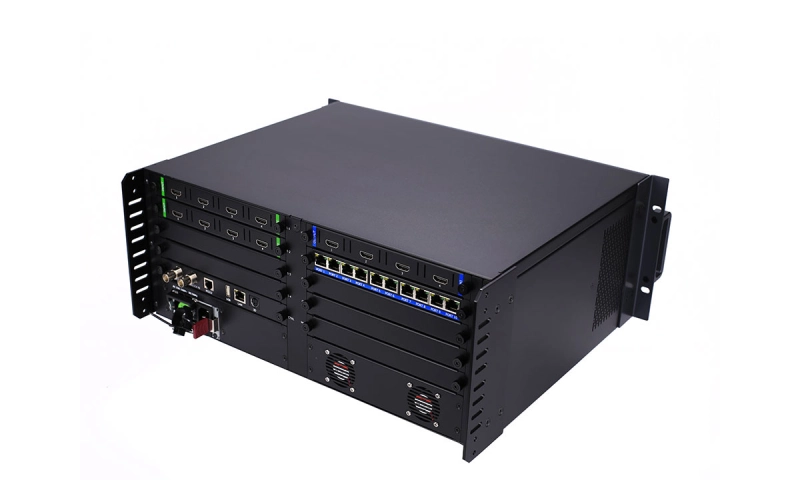

Colorlight X100 Pro Features
Input
.HDMI 2.0, DP1.2, 12G-SDI and single port supports up to 4096x 2160@60Hz.
.DVI, HDMI 1.4 and other types of input boards with up to 4 channels of 1920×1200@60Hz.
.VGA and other types of input boards with up to 4 channels of 1920×1080@60Hz.
.CVBS and other types of input boards with up to 2 channels of 720x576i@60Hz.
.3G-3DI port and other types of input boards with up to 4 channels of 1920x1080p@60Hz.
.Input frame rate from 23.98Hz to 144Hz.
.8bit/10bit video source input.
.HD ports (DVI/HDMI1.4) support HDCP.
.Customized inputs names and real-time monitoring of online status.

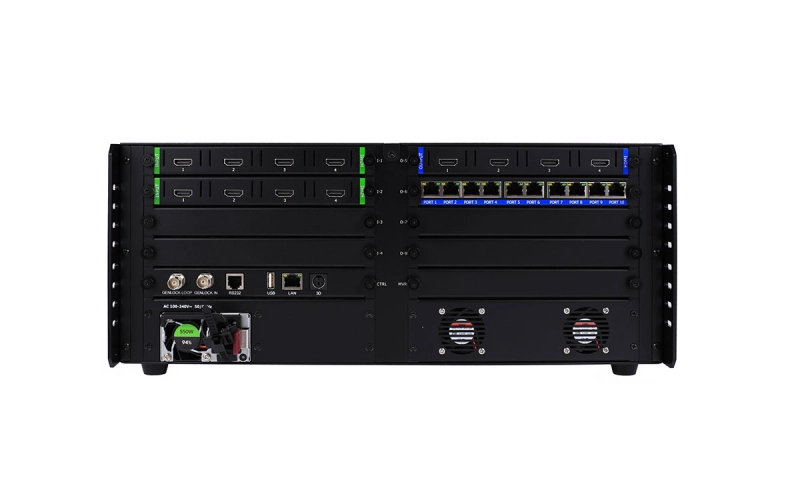

Output
.LED transmitter output integrated with Gigabit Ethernet port and optical fiber port of 10 Gigabit. Load capacity of single transmitter is up to 6.5 million pixels.
.HDMI1.4, DVI video board output, single board support maximum 4 channels of 1920×1200@60Hz.
.HDMI2.0 video board interface, single board support up to 4096×2160@60Hz.
.Output port arbitrary setting within device control area while not affected by cross-board.
.Output display from 23.98Hz to 120Hz.
.8bit/10bit output.
.Backup of output ports within single-device or between multi-device.
Preview and Monitoring
.Preview and monitoring board, preview the picture of the input source, and monitor the output from the device.
Video Processing
.Multi-layer display, support window roaming, free splicing, cross-board and cross-port.
.Each signal supports independent cropping. A new signal source is created after cropping.
.Moving Subtitle supports customizable text, font, font size, moving direction, speed, background color, etc.
.Ultra HD Background supports high-resolution picture, which can be up to 32767 pixels in width and height.
.Support input source logo, available in text and picture.
.3D display (purchase separately 3D accessories)
.Independent zooming and EDID management of each input signal.
.Genlock function.
.Custom frame rate, you can customize the output of 30/60/120/144/240Hz and other frame rates.
Size: 483.0mm×177.8mm×406.1mm
Weight: 13KG
Specification Download:
